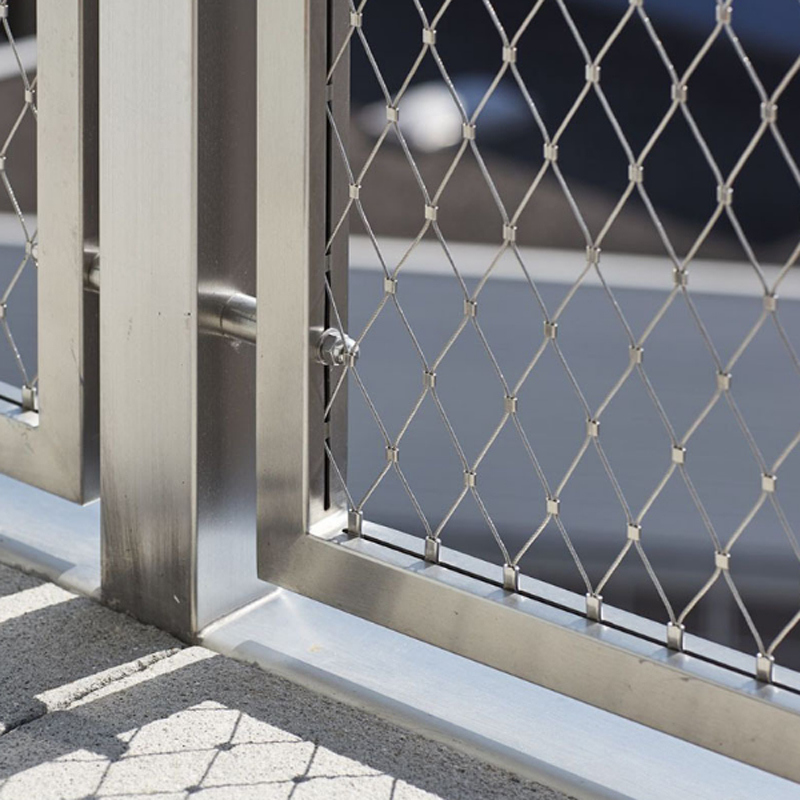

SS304 Flexible Cable Rope X-Type Infill Balustrade Protective Net
Product Specifications
| Attribute |
Value |
| Material |
SUS 304, SUS 316 |
| Wire Diameter |
1.2mm, 1.5mm, 2.0mm, 2.5mm, 3.0mm, 4.0mm |
| Size of Hole |
25×25mm - 300×300mm |
| Height |
Customized |
| Length |
Customized |
| Characteristic |
Anti-corrosion, non-rusting, anti-acid and alkali |
| Application |
Protective, fall prevention |
| Weave Style |
Plain Weave, Ferruled, Knotted/Ferruled, Woven or Ferruled |
Customized Stainless Steel Safety Rope Mesh
Hand-made from stainless steel wire rope, our cable mesh is custom manufactured in widths and lengths to suit balustrade, railing, or architectural applications. Diagonal and irregular shapes are also available.
Product Specifications
Material: Stainless steel 304, 304L, 316, 316L
Mesh Type: Woven or Ferrule mesh
Cable Structures: 7×7, 7×19
Cable Diameter: 1/8", 3/32", 1/16", 1/12", 3/64"
Mesh Size: 1"×1", 1-1/2"×1-1/2", 2"×2", 3"×3", 4"×4"
Height: 0.5-30m standard or customized
Length: 0.5-30m standard or customized
Shape: Available in irregular shapes including triangle, parallelogram, trapezoid

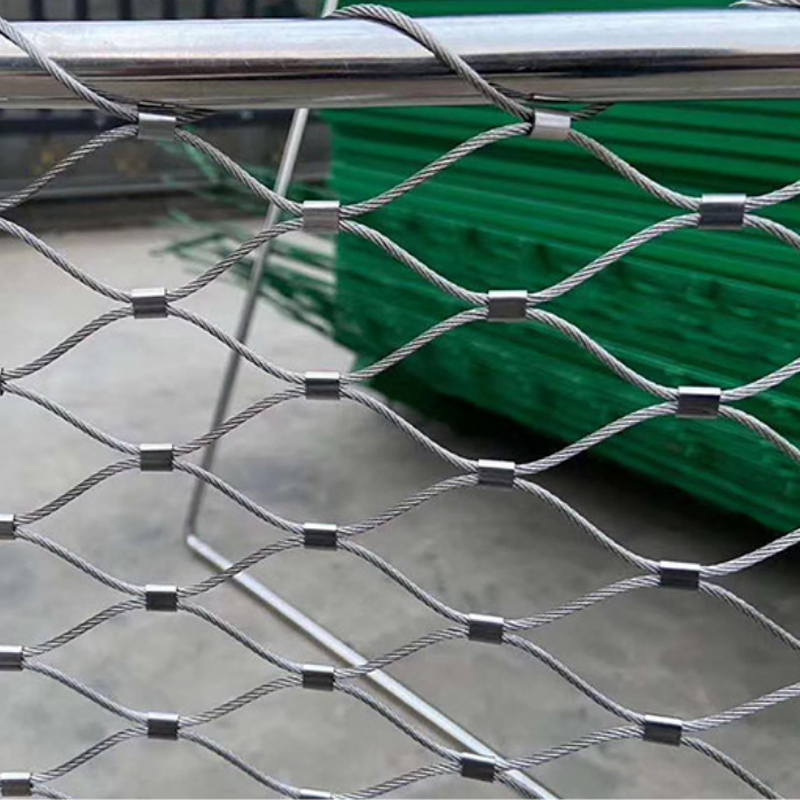

Flexible Stainless Steel Cable Mesh (Ferrule Type)
| Item No. |
Cable Diameter |
Mesh Opening Size |
Normal Break |
| YT-3212F |
1/8" (3.2mm) |
4.75×8.23" (120×207.8mm) |
1,600 lbs |
| YT-3210F |
1/8" (3.2mm) |
4×6.9" (102×176.7mm) |
1,600 lbs |
| YT-3211F |
1/8" (3.2mm) |
3.5×6.15" (90×156mm) |
1,600 lbs |
| YT-3213F |
1/8" (3.2mm) |
2×3.46" (51×88.3mm) |
1,600 lbs |
| YT-3214F |
3/32" (2.4mm) |
4×6.9" (102×176.7mm) |
920 lbs |
| YT-3215F |
3/32" (2.4mm) |
3.55×6.15" (90×156mm) |
920 lbs |
| YT-3216F |
3/32" (2.4mm) |
3×5.2" (76×131.6mm) |
920 lbs |
| YT-3217F |
3/32" (2.4mm) |
2.4×4.16" (60×104mm) |
920 lbs |
| YT-3218F |
3/32" (2.4mm) |
2×3.46" (51×88.3mm) |
920 lbs |
Cable Structures and Mesh Types
1. Knotted Mesh: Plain weave where each warp wire rope crosses alternately above and below each weft wire rope. Warp and weft wire ropes generally have the same diameter.
2. Ferruled Mesh: Shares the same physical properties as knotted mesh, but stainless wire ropes are combined by ferrules made of the same grade stainless steel.
About Stainless Steel Wire Cable Netting
Also known as safety netting system, it's widely used in slope reinforcement. The system, mainly made up of wire, provides both cover (initiative protection) and intercept (passive protection) functions to defend against various geological disasters.
Applications
Widely used in: Fence, garden fence, aviary mesh, bird netting, animal enclosure, zoo mesh, agriculture, residential fence, stair railing, balustrade infill, architectural surface plant climbing net, etc.
Product Advantages
- The netting is clipped to the cable
- Mesh size and diameter can be modified
- Custom manufactured and statically tested - especially suitable for facades
- High strength, strong toughness, free-angle curving and folding, easy for transportation and installation
- Anti-corrosive, rust-resistant, reusable
- Resists chewing by rodents and other pests (tensile strength approximately 100-110,000 PSI)
- Can withstand heavy snow and strong winds
- Non-toxic material, safe and environmentally friendly
Accessories
Packing and Delivery
Packing: Paper carton, wooden case
Delivery: FedEx, DHL, UPS, TNT EMS, by air, door-to-door or by sea
About Anping Yuntong Metal Wire Mesh Co., Ltd.
We are an exporter and manufacturer of series wire mesh and industrial wire, located in the native land of wire mesh in China. Our main products include various materials of fencing wire mesh, zoo mesh, rope mesh, aviary mesh, metal curtain, and aluminum decorative mesh.
Our products with complete specifications and sophisticated quality are mainly exported to the United States, Germany, South Korea, Belgium, and Southeast Asian countries. We have established long-term relationships with suppliers and earned trust from users worldwide.
Yuntong aims to become a first-class company integrating scientific research, production and management. Our goods are high quality at favorable prices, produced according to ISO9001 Quality Standards. 90% of our products are for export, selling well in the USA, Germany, Japan, Canada, South Korea, and other regions.
